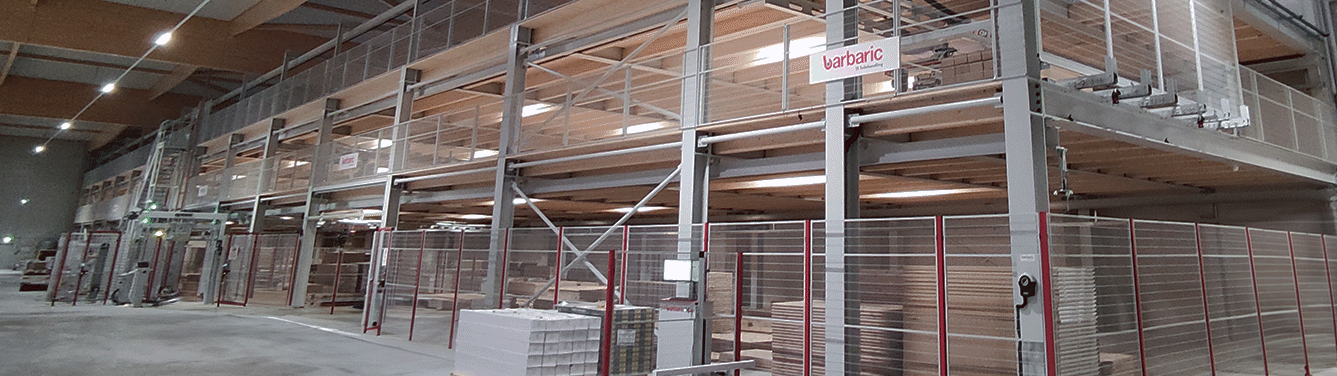

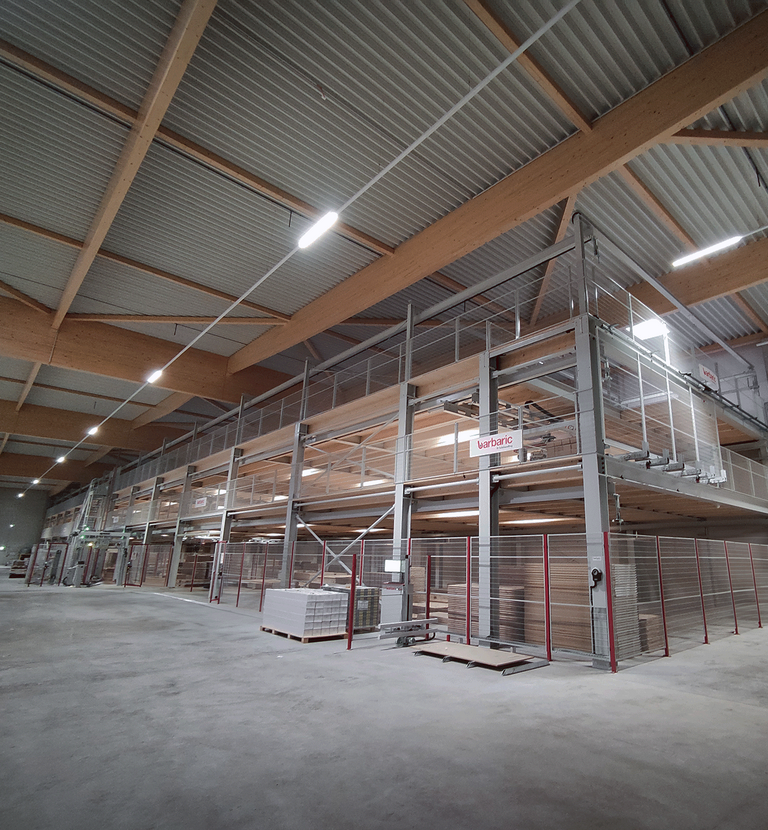

The innovative DRX storage and commissioning system sets new standards in modern storage and automated order picking. The three-level system provides space for several thousand items, which are moved flexibly and efficiently using up to six powerful manipulators.
Wide Product Range and Safe Handling
The storage system was specifically designed for packaged doors and standard frames in cartons. In addition, it enables easy handling of flooring packages (vinyl or parquet), stair treads, as well as various pallet formats including protective and cover boards. A specially developed
clamping traverse ensures secure fixation and significantly expands the range of items that can be handled. Gentle and safe material transport drastically reduces damage and ensures that even sensitive goods remain in perfect condition. Up to two doors can be picked up and transported simultaneously, further increasing throughput.
Fully Automated, Camera-Supported Storage
Storage is fully automated and supported by modern camera technology. Articles are scanned, clearly identified by their barcodes, and their exact position in the stack is automatically recorded. This innovative solution enables reliable storage without manual intervention – saving both time and cost. With options for chaotic, batch-specific, or grouped storage strategies, and parameter set management for various materials, the available warehouse space is optimally utilized. A graphical system visualization ensures complete monitoring of all processes.
Flexible, Integrated, and Efficient
All six manipulators are identically equipped,allowing items to be transferred easily between different levels. The customer’s ERP system is integrated with the warehouse control software and automatically coordinates pallet picking based on scheduled truck routes. The pallets are then
packed and labeled either as a complete unit or by individual item. With direct access to the database, material consumption statistics, and regular data backups, maximum transparency and traceability are ensured.
Custom Solutions and Expansion Options
The DRX system can be tailored to customer needs – whether single-story or multi-level – and flexibly expanded with lift tables or steel-frame passthroughs. This allows fast and easy material transfer between levels, significantly increasing the level of automation and overall productivity. Additional manipulators with CSF panel suction traverses can also be integrated, enabling doors, panels, and packages to be managed within one perfectly organized storage system.
From Idea to Implementation
It all starts with a simple idea: to make production or logistics processes simpler and more efficient. But turning that idea into reality can seem complex and challenging. Many hurdles must be overcome – from initial planning to final implementation.
You can rely on us throughout the entire process: from first contact through the full project phase, during installation and commissioning – and of course, long after. For us, comprehensive customer support is not just important, it’s a given.
At a Glance:
- Capacity: several thousand items
- Warehouse Structure: multi-level with up to 6 manipulators
- Product Types: doors, frames, flooring packages (vinyl/parquet), stair tread blanks, pallets, protective and cover boards
- Automation: camera-supported storage with automatic barcode identification
- Redundancy: two identical manipulators per level
- Picking: route-based compilation via customer ERP system
- Labeling: as a complete package or by individual item
- Benefits: reduced forklift traffic, fast and automated order picking, maximum transparency and process reliability
