Mobile vacuum handling

We are also strong in mobile applications.

Construction site equipment and vacuum lifters for mobile applications are also our strengths, as are vacuum lifting devices in wood and glass production. Our lifting devices for mobile use are characterised by their battery operation and are often designed for suspension from mobile or overhead cranes. Two or four-circuit vacuum systems make our vacuum lifters the safest lifting devices on the market.

ConstructionLifter Series CSL

Our vacuum lifters for use on construction sites.

Our CSL ConstructionLifters are specially designed for mobile use on the construction site and are battery powered. Features of these lifters are a robust and compact design, especially long-life modern rechargeable battery system which allows a runtime of up to several hundred suction processes as well as maximum ergonomics for easy handling. All lifters of this series are equipped with two- or four-circuit vacuum technology and have several redundant batteries - for maximum safety and minimal risk on the construction site.

Unique safety and flexibility - our product innovation for use at the construction site.

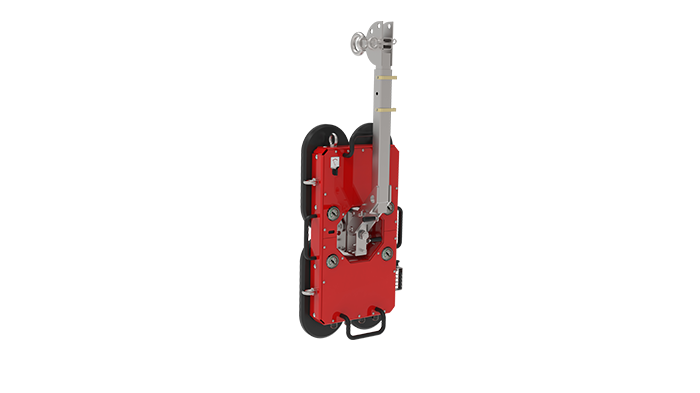

The ConstructionLifter CSL Type Z is our allrounder for the use on construction sites. With a maximum weight of 500 kg, panels can be moved not only vertically but also horizontally. Absolutely unique is our proven four-circuit technology, which ensures the greatest possible safety in mobile construction site use.

The suction cups of our CSL ConstructionLifter series with especially elastic and robust sealing lip are suitable for both flat and structured surfaces. The built-in double battery system not only ensures a long life of up to 200 suction processes, but also provides special safety on the construction site due to the redundant design of the batteries.

Various fields of application

  • Handling of flat and structured surfaces
  • Installation of facade elements
  • Assembly of glass or stone elements and metal sheets

Do you need more information or would you like a quote?



Product features:

  • Working load: max. 500 kg
  • Universal suction cups for structured and smooth surfaces
  • Four circuit technology for highest possible safety
  • Minimum suction time due to high suction capacity of the pumps
  • Special ergonomics: several handles allow easy handling
  • Double battery system for long operating time (up to 200 suction processes)
  • Horizontal and vertical transport possible (rotation and tilt function)
  • Low weight due to aluminium construction
  • Four vacuum gauges and a safety signal-horn for pressure monitoring integrated
  • Water separators ensure safe use even in humid conditions
  • Lifting eye for mounting an assembly rope

CSL Type Z battery lifter at Glasstec 2022

Stefan Barbaric shows our CSL Type Z battery lifter at Glasstec 2022 in Düsseldorf.

More product presentations

from the trade fair

Innovative, compact and ergonomic - our universal lifter for construction site use.

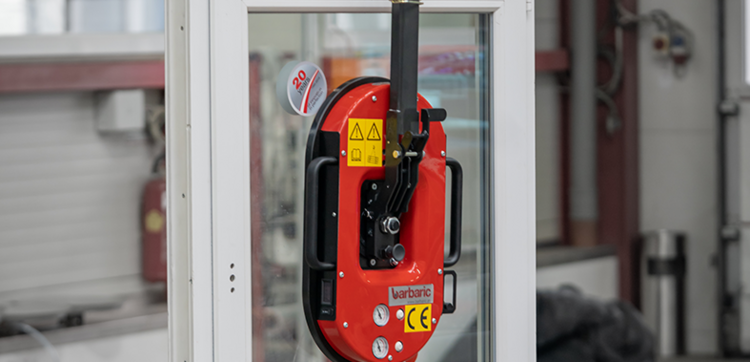

The ConstructionLifter CSL Type O is our universal lifter for construction site use with a very compact design. The innovative suction cup design combines two suction cups in one vacuum unit and thus enables special ergonomics and safety. A two-circuit vacuum pump system ensures the greatest possible safety in mobile use on the construction site. With a maximum load capacity of 250 kg, elements can be moved not only vertically but also horizontally.

The suction cups of our CSL ConstructionLifter series with especially elastic and robust sealing lip are suitable for both flat and structured surfaces. The built-in double battery system not only ensures a long life of up to 200 suction processes, but also provides special safety on the construction site due to the redundant design of the batteries.

Various fields of applications:

  • Handling of flat and structured surfaces
  • Installation of facade elements
  • Assembly of glass or stone elements and metal sheets

Do you need more information or would you like a quote?



Product features:

  • Working load: max. 250 kg
  • Innovative suction cup design with two vacuum chambers
  • Universally applicable sealing lip for structured and flat surfaces
  • Highest possible safety through two-circuit technology
  • Minimum suction time due to high suction capacity of the pumps
  • Special ergonomics: several handles allow easy handling
  • Modern dual battery system
  • Long operating time with one battery charge
  • Horizontal and vertical transport possible (rotation and tilt function)
  • Low weight due to aluminium construction
  • Two vacuum gauges and a safety signal-horn for pressure monitoring integrated

Technical changes and errors excepted.

CSL Type O battery lifter at Glasstec 2022

Stefan Barbaric shows our CSL Type O battery lifter at Glasstec 2022 in Düsseldorf.

More product presentations

from the trade fair

Safety and flexibility - particularly suitable for handling of long, narrow glass panels on the construction site.

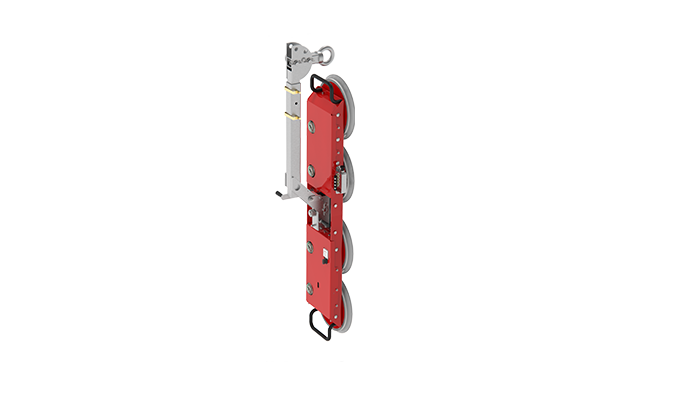

The ConstructionLifter CSL Type I with its special arrangement of suction cups is the optimal solution for the handling of long and narrow glass panels or similar components with flat surfaces. With a maximum working load of 500 kg, panels can be moved not only vertically but also horizontally. Absolutely unique is our proven four-circuit technology, which ensures the highest possible safety in mobile construction site use.

The suction cups of our CSL ConstructionLifter series with especially elastic and robust sealing lip are suitable for both flat and structured surfaces. The built-in double battery system not only ensures a long life of up to 200 suction processes, but also provides special safety on the construction site due to the redundant design of the batteries.

Fields of application:

  • Fast and safe installation of glass panels on construction sites
  • Handling of long glass or panels with flat surface

Do you need more information or would you like a quote?



Product features:

  • Working load: max. 500 kg
  • Suitable for vertical and horizontal transport of flat glass
  • Special arrangement of suction cups for the handling of long and narrow glass panels
  • Minimum suction time due to high suction capacity of the pumps
  • Highest possible safety through four-circuit technology
  • Dual-battery system for long operating time (up to 200 suction processes)
  • Special ergonomics: several handles allow easy handling
  • Low weight due to aluminium construction
  • Four vacuum gauges and a safety signal-horn for pressure monitoring integrated
  • Rotation function 360° horizontally
  • Tilting function regulated continuously up to 90° vertically
  • Minimal size of glass 1500 mm x 360 mm

Technical changes and errors excepted.

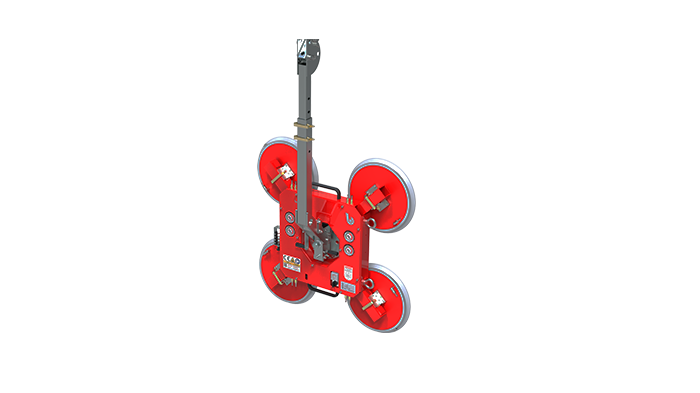

Battery lifter in lightweight construction with four-circuit system

Suitable for vertical and horizontal transport of flat glass on site. 360° rotation range, tilting range 90° with locking mechanism in different positions. The ConstructionLifter CSL Type X is equipped with a teleskopic and removable arm. Without the suspension arm, the lifter has a small construction size. Appropriate safety equipment is included in the basic version.

Versatile areas of application

With the extension arms, the base body can easily be modified. Thus, the suction cup arrangement is changed and the ConstructionLifter CSL Type X is versatile. Optionally, a carrying beam for working loads of 1000 kg (vertical only) with 4 additional suction cups is available.

Do you need more information or would you like a quote?



Technical data

  • Working load 500 kg (1000 kg optional)
  • Dual battery system for up to 200 suction processes
  • Fast charging power supply
  • Lifting eye for mounting an assembly rope
  • Four suction cups with a diameter of 420 mm, optional configuration with additionally 4 suction cups
  • Four-circuit technology for highest possible saftey
  • Minimum suction time due to high suction capacity of the pumps
  • Double battery system for long operating time (up to 200 suction processes)
  • Low weight due to aluminium construction
  • Four vacuum gauges and a safety signal-horn for pressure monitoring integrated
  • Rotation mechanism 360° horizontal
  • Continously variable tilting mechanism up to 90° vertically

Technical changes and errors excepted.

Press article in Glaswelt magazine 05/2022 - German only

In the issue of the magazine Glaswelt 05/2022 appears an article about our mobile lifting devices.

Article download - German only

Press article in Glaswelt magazine 04/2021 - German only

In the issue of the magazine Glaswelt 04/2021 appears an article about our mobile lifting devices.

Article download - German only

Battery Lifter Series BAT

Our vacuum lifters for mobile use.

Our mobile vacuum lifters of this series are battery-operated and designed for use with an overhead crane (or similar lifting equipment). Whether for the in-house assembly of glass panels or the handling of glass between different production steps - our handling solutions are the optimal companion for your lifting process.



Innovative, compact and ergonomic - our compact vacuum lifter for use on overhead cranes.

The BatteryLifter BAT 1M enables simple and flexible lifting of workpieces for indoor use at the overhead crane. The very compact design allows an effortless lifting of bulky workpieces with different surfaces. With a maximum load capacity of 125 kg, workpieces can be moved not only vertically but also horizontally.

The suction cups of our CSL ConstructionLifter series with especially elastic and robust sealing lip are suitable for both flat and structured surfaces. The built-in double battery system not only ensures a long life of up to 1000 suction processes, but also provides special safety on the construction site due to the redundant design of the batteries.

Versatile fields of application:

  • Use on an overhead crane or other lifting equipment
  • Easier manipulation throughout the processing steps
  • Universal use as an assembly aid

Do you need more information or would you like a quote?



Product features:

  • Working load: max. 125 kg
  • Universally applicable suction cup for structured and flat surfaces
  • Minimum suction time due to high suction capacity of the pumps
  • Special ergonomics: several handles allow easy handling
  • Horizontal and vertical transport possible (tilt function)
  • Low weight due to aluminium construction
  • Pressure gauges and a safety signal-horn for pressure monitoring integrated
  • Particularly compact design allows effortless handling
  • Modern battery system with lithium-ion technology
  • Long operating time with one battery charge (up to 1000 suction processes)

Technical changes and errors excepted.

Features

  • Rotating and tilting function for the manipulation of curved glass
  • Working load: max. 500 kg

Technical changes and errors excepted.

Do you need more information or would you like a quote?



EasyLifter Series EZL

Our innovative mobile suction cup for manual operation.

The EasyLifter Mini is designed to work on battery power. It could not be easier to operate, and makes moving loads safe and problem- free. Two operating handles for easy manipulation are mounted on the construction. The only requirement is a solid material with smooth surfaces. Thanks to its versatility, the EasyLifter Mini can be used for a wide range of different applications: Glass industry, windows, furniture, facade elements, stone slabs, motor vehicle sector, load securing, metalworking, and much more.

Mobile suction cups for various areas of application.

The EasyLifter Mini is designed to work on battery power. It could not be easier to operate, and makes moving loads safe and hassle-free. Two operating handles for easy manipulation are mounted on the lifter. The only requirement is a solid material with smooth surfaces. Thanks to its versatility, the EasyLifter Mini can be used for a wide range of different applications: Glass industry, windows, furniture, facade elements, stone slabs, motor vehicle sector, load securing, metalworking, and much more.

Do you need more information or would you like a quote?



Technical data

  • Working load: max. 100 kg
  • Suction cup: Ø 270 mm (changeable)
  • Battery operation of up to 300 suction processes
  • Fast engagement time approx. 2 sec
  • Vacuum monitoring system
  • Battery-powered vacuum pump
  • Charging unit included (230 V)
  • Lightweight construction – weight approx. 3 kg

Technical changes and errors excepted.

Innovative mobile battery suction cup for various surfaces.

In comparison to the EasyLifter Mini, the EasyLifter Mini U is designed for both structured and smooth surfaces. Also here, the handling is easy and guarantees a safe and trouble-free movement of loads. Due to its versatility, the EasyLifter Mini U can be used for a wide range of different applications: Glass industry, windows, furniture, facade elements, stone slabs, motor vehicle sector, load securing, metalworking, and much more.

Do you need more information or would you like a quote?



Technical data

  • Working load: max. 80 kg
  • Suction cup: 305 mm x 160 mm (changeable)
  • Modern dual-battery system with lithium-ion technology
  • Long operating time with one battery charge (up to 1000 suction processes)
  • Fast suction time approx. 2 sec
  • Vacuum monitoring system
  • Battery-powered vacuum pump
  • Delivery with external power supply unit (230 V)
  • Lightweight construction – weight approx. 3 kg

Technical changes and errors excepted.

Mobile suction cups for various areas of application.

The EZL Roll adapter can be connected with the EasyLifter EZL Mini within a few quick steps. This adapter moves glass and windows with max. 200 kg on site. The large, air-filled wheel can also be easily moved over steps.

Special protectors faciliate rotation of glass plates. The corners of the plates are protected. Therefore, damages of glass and ground are avoided.

Do you need more information or would you like a quote?



Technical data

  • Working load: max. 200 kg
  • Suction cup: Ø 270 mm (changeable)
  • Battery operation of up to 300 suction processes
  • Fast suction time approx. 2 sec
  • Vacuum monitoring system
  • Battery-powered vacuum pump
  • Charging unit included (230 V)
  • Lightweight construction – weight approx. 3 kg

Technical changes and errors excepted.

SpecialMobileLifter Series SML

Mobile special solutions for special applications

For special lifting processes and applications we also offer special solutions in the field of mobile vacuum lifting technology.



Ideal for large manipulation areas and maximum mobility for handling panels or parts. Design: Built in batteries for power supply and fork fixation clamps for a strong secure hold.

Do you need more information or would you like a quote?



Technical data

  • incl. 90° tilt mechanism
  • 90° manual turning function
  • Load capacity: max. 100 kg
  • Optional: electrical turning 90°
  • Optional: Increased load capacity to max. 250 kg

Technical changes and errors excepted.
